12V Roof Fan Ceiling Quiet Ventilation Cooling Grille for Campers and Motorhome



Feature:

• Strong wind, low noise, effective and quiet ventilation, quickly remove moisture and odours. Dust‑proof filter, two‑way large‑displacement ventilation.

• Built‑in copper motor with thermal protection, it can work continuously without maintenance.

• Space‑saving top mounting type, easy to install, no complicated tools required.
• Frame and blade are made of ABS material, painted white finish, waterproof, dust proof and energy‑saving.
• It can be used in kitchen and bathroom, suitable for marine ships, yachts, RVs, trailers, motorhome, etc.

Specification:

Item Type: RV Fan
Material: ABS
Rated Voltage: 12V
Hole Diameter: Approx. 118mm/4.6in
Speed: 3000 rpm/min
Volume: 80CFM



Package List:

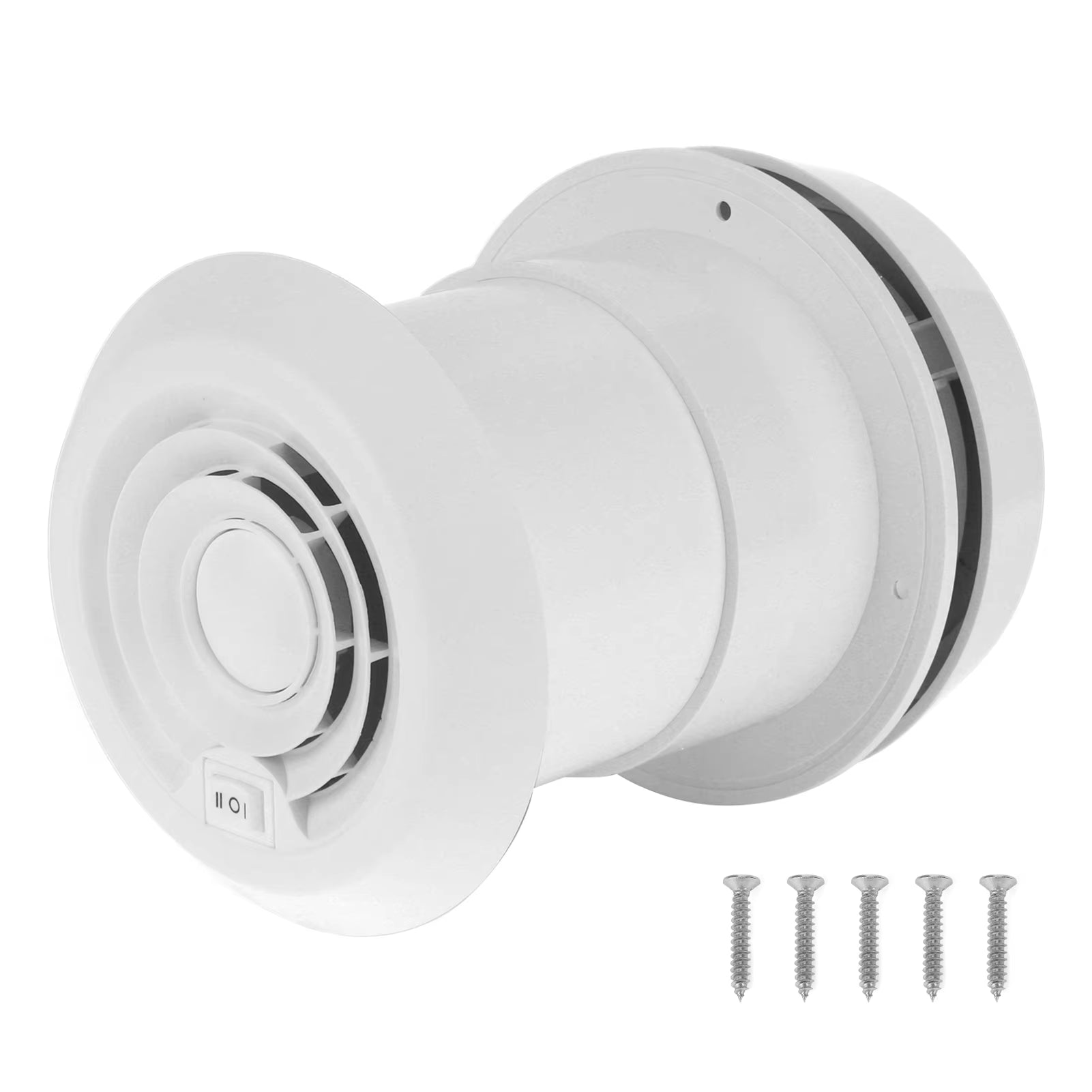

1 x Fan

1 x Outlet

5 x Screws

1 x Manual

Installation Thickness: Approx. 80-160mm/3.1-6.3in (adjustable)

Installation Method: open hole, connect at both ends to install
Usage: Install and fix to location.
Wiring:Positive pole of the fan connected to the middle tripod of the switch.
Negative pole of the fan connected to the negative pole of the power supply.
The positive pole of the power supply is connected to the tripod at both ends of the switch.
